A un vistazo

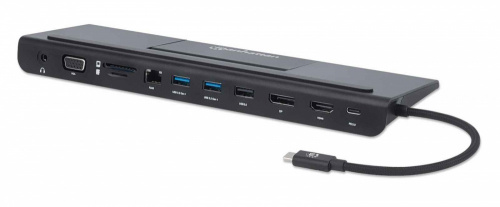

Multi-function docking station that connects a USB-C device to HDMI, DisplayPort and VGA displays simultaneously, two USB 3.2 Gen 1 Type-A ports, a USB 2.0 Type-A port, a 10/100/1000 Mbps Ethernet port, a 3.5 mm stereo port, a USB-C power port and an SD Card Reader
Dual-video output with resolutions up to [email protected] or triple-video output with resolutions up to [email protected]
Up to [email protected] (UHD) resolution on HDMI connection
Up to [email protected] (UHD) resolution on DisplayPort connection
Up to [email protected] (Full HD) resolution on VGA connection
Display modes in Mirror or Extended with Multi-Stream Transport (MST)
Lets your smartphone work like a desktop PC while also charging it
One Gigabit Ethernet (10/100/1000) port for faster downloads, media streaming and gaming
Two USB 3.2 Gen 1 and one USB 2.0 type-A ports to connect mice, keyboards, flash drives and more or to charge and sync mobile devices
USB-A SuperSpeed ports offering 5 Gbps data transmission speeds and supporting BC 1.2 to charge up to 7.5 W (5 V / 1.5 A)
Micro SD and SD card slots with read/write function; supports automatic card detection and data transfer speeds up to 832 Mbps
Supports USB Power Delivery (PD) function up to 100 W; requires an external PD charger – available from Manhattan
3.5 mm jack for high-quality stereo sound; supports both a mic (audio input) and headphone (audio output)
Aluminium housing for improved durability; converter is the perfect desktop or travel companion
Fold-out kickstand to place your phone on the docking station
Compatible with all USB-C DP-Alt-Mode-supported desktops, notebooks and tablets including Apple® MacBook®, Chromebook™, Pixel™ and more
Compliant with DisplayPort 1.2 Alternate Mode (DP Alt Mode)
Fully shielded to reduce EMI and other interference sources
Sturdy cable with moulded PVC boot and nylon-braided protective jacket
Plug and Play
Detalles del producto
Conexiones
- Un USB-C de 24 pines, macho.
- 1 HDMI de 19 pines, hembra.
- 1 DisplayPort de 20 pines, hembra.
- 1 VGA de 15 pines, hembra.
- 1 RJ45 10/100/1000 Mbps, hembra.
- 3 USB-A de 4 pines, hembra.
- 1 entrada para memorias SD.
- 1 entrada para memoria Mini SD.
- 1 Jack de audio de 3.5 mm, hembra.
- 1 entrada USB-C 24 pines, Power Delivery, hembra.
- La configuración de escritorio requiere dispositivos con Android 9 o superior que ofrezcan salida de video a través de USB-C
Preguntas y respuestas sobre este producto
Aún no hay preguntas acerca de este producto
Resuelve tus dudas preguntando a la comunidad y a nuestro equipo de servicio al cliente.
Resuelve tus dudas preguntando a la comunidad y a nuestro equipo de servicio al cliente.
Especificaciones
| Teclado | |
|---|---|
| Cantidad de puertos USB 2.0 | 1 |
| Puertos e Interfaces | |
|---|---|
| Ethernet LAN (RJ-45) cantidad de puertos | 1 |
| Salida de audio |
|
| Cantidad de puertos de pantalla | 1 |
| Número de puertos HDMI | 1 |
| Ranura del lector de tarjetas | 2 |
| Cantidad de puertos VGA (D-Sub) | 1 |
| Cantidad de DisplayPorts | 1 |
| Cantidad de puertos tipo A USB 3.0 (3.1 Gen 1) | 3 |
| Peso y dimensiones | |
|---|---|
| Altura | 25 mm |
| Profundidad | 87 mm |
| Peso | 340 g |
| Ancho | 260 mm |
| Control de energía | |
|---|---|
| Alimentación | USB-C PD: 100 W (20 V a 5 A) |
| Diseño | |
|---|---|
| Certificación | CE FCC |
| Color del producto | Negro |
