A un vistazo

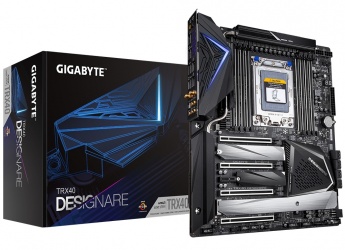

Supports 3rd Gen AMD Ryzen™ Threadripper™ Processors
Quad Channel ECC/ Non-ECC Unbuffered DDR4, 8 DIMMs
16+3 Phases Infineon Digital VRM Solution with 70A Power Stage
Triple Thermal Protection with Fin-Arrays and 8mm Maga-Heatpipe
Dual Intel® Gigabit LAN with cFosSpeed to shorten response time
4 Ultra-Fast NVMe PCIe 4.0 x4 M.2 with Enlarged Thermal Guards
Onboard Intel® WiFi 6 802.11ax 2T2R & BT 5 with Antenna
120dB SNR AMP-UP Audio with ALC1220-VB and WIMA Audio Capacitors
Bundled 40Gb/s GC-Titan Ridge Add-In Card
Exclusive AORUS Gen4 AIC Adaptor for Extra 4 NVMe PCIe 4.0/3.0 x4 M.2
USB TurboCharger for Mobile Device Fast Charge Support
RGB FUSION with Multi-Zone Addressable LED Light Show Design, Support Addressable LED & RGB LED Strips
Smart Fan 5 features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP and Noise Detection
Front & Rear USB 3.2 Gen 2 Type-C™ Header
Q-Flash Plus Update BIOS Without Installing CPU, Memory and Graphics Card
Detalles del producto
Preguntas y respuestas sobre este producto
Resuelve tus dudas preguntando a la comunidad y a nuestro equipo de servicio al cliente.
Especificaciones
| Puertos e Interfaces | |
|---|---|
| Número de puertos HDMI | 0 |
| Ranuras de expansión | |
|---|---|
| Ranuras x1 PCI Express | 1 |
| Ranuras x16 PCI Express | 4 |
| Panel trasero Puertos de I/O (entrada/salida) | |
|---|---|
| Cantidad de puertos USB 2.0 | 2 |
| Ethernet LAN (RJ-45) cantidad de puertos | 2 |
| Audio digital, salida optica | 1 |
| Cantidad de puertos tipo C USB 3.1 (3.1 Gen 2) | 1 |
| Conector USB | USB-A/USB-C |
| Puerto de salida S/PDIF |
|
| Conector para antena WiFi-AP | 2 |
| Cantidad de puertos tipo A USB 3.1 (3.1 Gen 2) | 5 |
| Peso y dimensiones | |
|---|---|
| Profundidad | 269mm |
| Ancho | 325 mm |
| Detalles técnicos | |
|---|---|
| USB 3.0 ( 3.1 Gen 1 ) cantidad de puertos | 2 |
| Factor de forma | XL-ATX |
