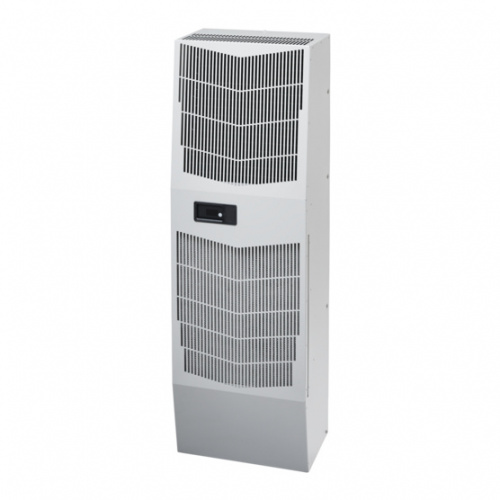

A un vistazo
Attractive industrial design with minimal use of visible fasteners
Energy-efficient rotary compressor on most models
Cleanable, reusable aluminum mesh filter included to protect coils for maximum cooling performance in dirty environments
R407c and R134a refrigerants
115, 230 and 400/460 VAC 3-phase power input on most models
Reliable mechanical thermostat on enclosure side of the unit
All G-series come standard with two separate thermostats for cooling and heating when a heater is equipped
Dust-resistant condenser coil allows the unit to be run filterless in most indoor applications
Dual condenser-side air movers for performance redundancy on G52 and G57 models
Galvanized or stainless steel cover for rugged factory and outdoor environments
Exterior and partially recessed mounting options
Easy-mount flanges for simple installation
Every unit functionally tested before shipping
Standard Indoor Air Conditioner models also include: Active condensate management with heater strip, power-off relay for door switch and other system requirements, malfunction switch, and a digital display on ambient side
Standard Outdoor Air Conditioner models also include: Telcordia GR-487 capable*, Corrosion-resistant coatings on condenser coil for Type 4 units and on condenser coil and ambient-side copper joints for 4X units, malfunction switch, compressor heater, head pressure control, standard G28/G52 units have 2000W, and operating temperature range from -40 F/-40 C to 131 F/55 C
Remote Access Control Units support up to 2 temperature sensors and 10 alarms. They support multiple communication protocols: SNMP, Modbus TCP, Ethernet/IP, and Profinet.
Mounting hardware, gaskets and user manual furnished with the unit
Detalles del producto
Preguntas y respuestas sobre este producto
Aún no hay preguntas acerca de este producto
Resuelve tus dudas preguntando a la comunidad y a nuestro equipo de servicio al cliente.
Resuelve tus dudas preguntando a la comunidad y a nuestro equipo de servicio al cliente.
Especificaciones
| Detalles técnicos | |
|---|---|
| Filtro de aire |
|
| Unidad para interiores | |
|---|---|
| Ancho de la unidad interior | 43.5 cm |
| Altura de la unidad interior | 133.8 cm |
| Profundidad de la unidad interior | 29.6 cm |
| Tipo de unidad interna | Luminarias de pie |
| Control de energía | |
|---|---|
| Consumo de energía (enfriamiento) (máx.) | 2300 W |
| Corriente de arranque | 13 A |
| Corriente (refrigeración) | 2.4 A |
| Frecuencia de entrada AC | 50/60Hz |
| Voltaje de entrada AC | 400 V |
| Certificados | |
|---|---|
| Certificación | UL/cUL Listed; Type 12, 3R, 4; 4X optional; File No. SA6453 |
| Desempeño | |
|---|---|
| Temperatura de funcionamiento (enfriamiento) (T-T) | 10 - 55 °C |
| Capacidad de enfriamiento (máx.) | 8000 BTU/h |
| Material de la cubierta | Acero |
