A un vistazo
Intel® LGA 1700 socket: Ready for 12th Gen Intel Core, Pentium Gold and Celeron Processors
Optimal Power Solution: 16+1 DrMos with ProCool II power connector, high-quality alloy chokes and durable capacitors to support multi-core processors
Optimized Thermal Design: Integrated I/O cover and VRM heatsinks with high conductivity thermal pad, four onboard M.2 heatsinks and M.2 backplate for the M.2_1 slot
High-performance Networking: On-board Intel WiFi 6 (802.11ax) and Intel 2.5 Gb Ethernet with ASUS LANGuard
Best Gaming Connectivity: Supports HDMI 2.1 and DisplayPort 1.4 output, four M.2 slots, as well as USB 3.2 Gen 2x2 Type-C
Intelligent Control: ASUS-exclusive AI Overclocking and Two-Way AI Noise Cancelation to simplify setup and improve performance
DIY Friendly Design: PCIe®Slot Q-Release, M.2 Q-Latch, ROG Reusable Cable Organizer, pre-mounted I/O shield, BIOS FlashBack button, and Clr CMOS button
Unmatched Personalization: ASUS-exclusive Aura Sync RGB lighting, including an RGB header and three addressable Gen 2 headers
Industry-leading Gaming Audio: High fidelity audio with ALC4080 with Savitech SV3H712 amplifier, along with DTS® Sound Unbound and Sonic Studio III
Renowned Software: Bundled AIDA64 Extreme 60 days free trial version and intuitive UEFI BIOS dashboard with integrated MemTest86
Detalles del producto

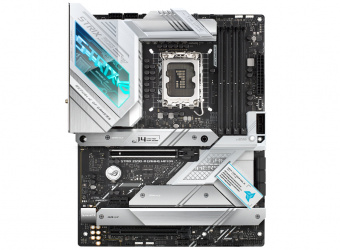

Esta tarjeta madre cuenta con un conector de ventilador CPU y tiene una profundidad de 244 mm. También incluye un conector TPM y un botón de limpieza CMOS. Es compatible con RAID y utiliza el socket LGA 1700 para procesadores.
La tarjeta madre ASUS ATX Rog Strix Z690-A Gaming WiFi D4 tiene cinco conectores a ventilador de chasis e incluye cables SATA. Además, cuenta con dos puertos USB 2.0 y puede admitir velocidades de reloj de memoria desde los 3600 hasta los 5333 MHz.
El tamaño del BIOS es de 256 MB/s y la interfaz ethernet utilizada es la Ethernet Gigabit Ethernet estándar (RJ-45). La tarjeta madre también ofrece interfaces M.2, PCI Express 4.0 y SATA para discos de almacenamiento compatibles.
Tiene cuatro ranuras PCIe x1 (Gen3.x) disponibles, así como cuatro ranuras M.2 (M). Los niveles RAID admitidos son el nivel cero, uno, cinco y diez.
En cuanto a las conexiones externas, esta tarjeta madre dispone de una salida HDMI y varios puertos tipo A USB 3.1 Gen1/Gen2 disponibles.
Cuenta además con Bluetooth versión 5.2 integrado junto al chip Realtek ALC4080 que proporciona audio HD multicanal. También es compatible con los estándares Wi-Fi 6 (802.11ax) y tiene un puerto Ethernet LAN.
La tarjeta madre ASUS ATX Rog Strix Z690-A Gaming WiFi D4 utiliza el factor de forma ATX y cuenta con conectores USB 3.0/3.1 Gen2, así como un conector eléctrico de 12V y un conector de potencia ATX (24 pines).
Es compatible con procesadores Intel Celeron, Core i3, Core i5, Core i7, Core i9 y Pentium. Admite una memoria interna máxima de hasta 128 GB sin buffer.
En resumen, la tarjeta madre ASUS ATX Rog Strix Z690-A Gaming WiFi D4 ofrece una amplia gama de características y opciones para mejorar el rendimiento del PC en términos de almacenamiento, conectividad y capacidad multitarea.
(1) preguntas y (1) respuestas sobre este producto
¿No encuentras la respuesta a tu duda?
Especificaciones
Panel trasero Puertos de I/O (input/output) | |
---|---|
Cantidad de puertos USB 3.2 Gen 2x2 Tipo C | 1 |
Puertos e Interfaces | |
---|---|
Número de puertos HDMI | 1 |
Ranuras de expansión | |
---|---|
Ranuras x16 PCI Express | 1 |
PCI Express x1 (Gen 3.x) ranuras | 1 |
Peso y dimensiones | |
---|---|
Profundidad | 244 mm |
Ancho | 305 mm |
Detalles técnicos | |
---|---|
Factor de forma | ATX |
